Complete the configuration of Dev-Edge to allow north-south routing connectivity for the new Dev-segment.
Workloads will have overlapping IP addressing with production workloads. The developers will RDP into a jump host server (Dev-Jumphost) on the Dev-Web segment. An RDP shortcut named To Dev-JumpHost.rdp has been created on the ControlCenter Desktop.
The following has been preconfigured on Dev-Edge:
The uplink interface on the Dev-Edge has been pre-configured to communicate the upstream Gateways and attached to Dev-to-PGs-Transit.
Dev-DLR-NEW and Dev-Edge interfaces have been preconfigured to communicate with each other.
ECMP has been disabled.
Requirements:
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
Dev-Jumphost information:
Credentials: administrator / VMware1!
Internal IP of Dev-Jumphost: 172.16.10.100
External IP of Dev-Jumphost: 192.168.5.100
Connection Information:
Dev-Edge-Uplink IP: 192.168.5.3/24
Dev-Edge-Internal IP : 192.168.6.6/30
Preimeter-Gateway-01-Internal IP: 192.168.5.1/24
Preimeter-Gateway-02-Internal IP: 192.168.5.2/24
Logical switch: Dev-to-PGs-Transit
ECMP: Enabled.
BGP AS: 65001
Credentials for all Edge Devices: admin / VMware1!VMware1!
The networking team requires BGP as a routing protocol with an AS of 65001 for North-bound access for the Dev-environment.
Use the fewest number of static routes and utilize network prefixes to ensure accessibility to the Dev-Web-Tier-01-NEW within the Dev-environment.
Ensure Dev-Jumphost is on Dev-Web-Tier-01-NEW.
Ensure the ability to RDP into the Dev-Jumphost server from the production network (ControlCenter).
HOL LAB for Practice:
module, it will be use full for other question like 20 and 22
See the explanation part for complete solution.

SOLUTION:





Static Routes on Dev-Edge:
Network:172.16.0.0/16
Next Hop:192.168.6.5
Interface:Dev-Transit










Uplink
192.168.5.100
Tcp
3389
172.16.10.100
3389


(1) Go to Vcenter-a. select network & Security. select NsX Edge.
(2) check the PGW01 configuration if everything is ok no need to do any changes specially ip address and routing. if not than select PGW01. select Manage. select routing select global configuration and enable routing. click publish changes.
be sure ECMP is enabled.
select BGP Configuration. click edit. select enable BGP, select Enable Graceful restart (select enable Default originate). enter AS 65001 click ok click publish changes







SSH to both Perimeter Routers and verify BGP neighborship.
Username: admin
Password: VMware1!VMware1!

Add jumphost VM to Dev-Web-Tier-01-NEW Logical Switch



NOTE:
192.168.5.100 interface is created in the next task only. So after testing the next task output, you should be able to get the RDP login.

An NSX administrator has been troubleshooting a communication issue between Edge device TS-Comm-Edge-01 and the TS-Comm-DLR-01 logical router with no success and has reached out to you for further assistance. The following troubleshooting has already been performed.
Temporarily disabled the firewall between both devices.
Unsuccessful ping from TS-Comm-Edge-01 to TS-Comm-DLR-01
Unsuccessful ping from TS-Comm-DLR-01 to TS-Comm-Edge-01
Determine and resolve the communication issue between the two devices.
Requirements:
vCenter: vcsa01a.crop.local
Credentials: [email protected] / VMware1!
Troubleshooting Information:
Edge: TS-Comm-Edge-01 (192.168.33.1)
DLR: TS-Comm-DLR-01 (192.168.33.8)
Transit Network: TS-Comm-Transit
IP Subnet: 192.168.33.0/29
Ensure communication between both devices is successful.
NOTE:
IP addresses must remain unchanged.
HOL LAB for Practice:
See the explanation part for complete solution.

SOLUTION:
Troubleshooting:
TS-Comm-Edge-01
Interfaces -> TS-Comm-Transit (change the subnet mask to 28)
Verification:

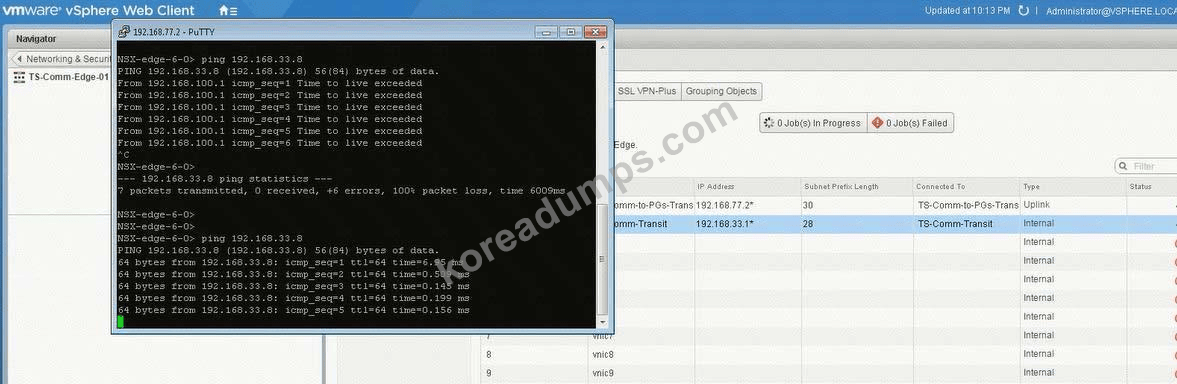

SSH to TS-Comm-Edge-01 (192.168.7.2) and ping 192.168.33.8





(2) select Ts-Comm-DLR-01 from Nsx Edge. select Manage tab. select Settings.
select interface. check the ip address and mask. and change the mask to /28.
click ok.
(3) select Manage Tab. select Routing. select global configuration. click edit.
select OSPF enter router ID 192.168.33.8 click ok. click on enable
click on publish changes.
(4) select OSPF. click edit. enable OSPF. Enter Protocol Address 192.168.33.7 enter forwarding address 192.168.33.8 (ip address of the vnic). click enable graceful restart. click ok.
(5) under area. click + Sign and add area 0. select type normal. select authentication none. click ok.
(6) under area to interface mapping. click on + sign. select interface uplink enter area 0. enter hello interval 10. dear interval 40. enter priority 128 enter cost 1. click ok. click publish changes.
(7) select TS-Comm-Edge-01. select manage select routing. select global configuration.
click edit under dynamic routing configuration.enter router id ts-comm 192.168.33.
click ok. click publish changes.
(8) select OSPF. click edit. enable OSPF. enable graceful restart. click ok.
select vnic transit. enter area 0. click on blue icon. change the subnet mastk to /28. click ok.
(9) select Firewall under manage Tab. click disable. click publish changes.
do the same steps for Ts-comm-DLR-01. and disable the firewall.

Create a backup of only the vDS portgroup the NSX controllers utilize along with the NSX Firewall configuration. Also, the security team had identified a missing security policy that needs to be added.
Requirements:
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
Components to backup:
vDS Portgroup that the controllers utilize.
NSX Firewall configuration.
Backup file name: vdsPortGroup-backup-NEW.zip, nsxfw-backup-NEW.xml
Backup file location: Desktop of the ControlCenter.
Security Policy:
File to import: sec-policy-blueprint located on the desktop of the ControlCenter.
Backup only the vDS portgroup that the NSX Controllers utilize.
Backup the NSX Firewall configuration.
Import the sec-policy.blueprint file
Ensure requirements are met.
HOL LAB for Practice:
See the explanation part for complete solution.

SOLUTION:
select Network & Security. select service composer. select 192.168.110.15.
select security policy tab. click on + sign enter name sec-policy-blueprint.
click next 3 times. click finish. select sec-policy-blueprint. click right mouse button select export configuration. enter name sec-policy-blueprint. click next select sec-policy-blueprint. click next. click finish. select desktop location.
enter name sec-policy-blueprint. click save. select sec-policy-web and delete it.
Verify NSX Controllers' vDS Portgroup
Vds-mgmt-a_Management network (under site A vcenter networking)
